Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel

Name: Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel
Brand: Meltonled
Price: 1 USD

Wholesale Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel from china suppliers

Place of Origin : Shenzhen, China

Brand Name : Meltonled

Certification : CE, RoHS, ISO,FCC,UL

Model Number : P16-681

MOQ : 1pc/1sqm

Price : 1-100000usd

Packaging Details : Anti-shaking wooden case/flight case/carton

Delivery Time : 8-25 days

Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram

Supply Ability : >500sqm/month

Delivery term : Ex-work/FOB/CIF/DDU

Product Name : Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel　　　

Application : Advertising

Tube Chip Color : Full Color

Pixel Configeration : 1R,1G,1B

Pixel Pitch : 16mm

Pixel Density : 3906 dots / m2

Contact Now

Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel

Melton--Outdoor led display spec.pdf

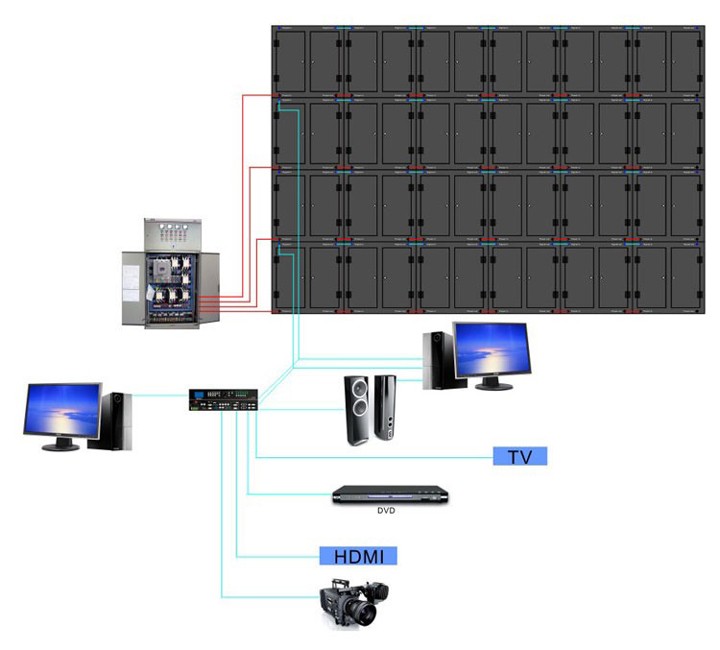

1) System structure

Commercial p10 p16 p20 Outdoor Full Color Led Display With Double Side 346 Pixel

2)Led Module

Module Size(W * H)	256mm*256mm	Pixel Configeration	1R,1G,1B
Pixel Pitch	16mm	Resolution(W*H)	16dots*16dots
Pixel Density	3906 dot / m²	Driving Method	static Current

3)Led cabinet

Cabinet Size(W * H)	1024mm*768mm	Module Qty	20pcs
Cabinet Resolution(W * H)	64dots*48dots	Cabinet Pixel	4096
Weight	50kg/pc	Area	1.23(m²)
Avarage Power Consumption	200W/m²	Max Consumption	600W/m²

4)Led Video wall technical parameter

Operating Humility	10% ~ 90% RH
Oprating Temprature	-20°C ~ +60°C
Optimal Viewing Distance	10m-60m
Display Color	1,070,000,000
Gray Scale	65536grade
Brightness control	256grade
Frame Frequency	60HZ
Refresh Speed	>3840HZ
Power Supply	220V/50HZ
MTBF	≥10,000hours
Life Span (50% brightness)	≥100,000hours
Control Mode	synchronization with PC
Input Signal Format	VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV
Operating System	WINDOWS(98,2000,XP,Vista)

1.Applications:

outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;

2.Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Competitive Advantage:

1, Good quality;

2, Good price;

3, Good 24hours service;

4, Promote delivery;

5, Energy-saving;

6, Small order accepted.
